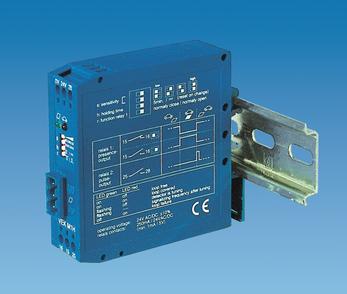

MID1E-800 Induction loop detector for vehicle detection with two relay outputs.

The MID1E-800 is a 24VDC C-Rail mountable inductive loop vehicle detector. The MID1E-800 reads and monitors a single vehicle induction loop and provides feedback to count systems as well as parking system about the current status of the loop. The MID1E-800 loop detector is also perfect as traffic loop detector and many other application where a reliable and accurate inductive loop vehicle detector is needed.

The detectors come in a small form factor that fits in all spaces and mounts on a standard 35 Din Rail.

Applications:


  • Car park
  • Parking Garage
  • Access Control
  • Gate Loop Detector
  • Traffic Loop Detector
  • Vehicle detection loops
  • Traffic Detector loops



​Alternative model:


VEK M1H Inductive loop vehicle detector (1-channel)

Special Characteristics:

  • Plastic housing with compact size to be mounted directly on DIN – or C-rail
  • Direct cabling, no plug socket
  • Microprocessor controlled
  • Isolation transformer between loop and detector electronics
  • Automatic Calibration when switching on or when changing the adjustment of holding time
  • Adjustment of unlimited holding time possible
  • Indication with LED`s
  • All adjustments with DIP – switch on front panel
  • Adjustments of relay functionality


Features

  • Isolation transformer between loop and detector electronics
  • Automatic calibration when switching on or changing the adjustment of holding time
  • Plastic housing with compact size to be mounted directly on DIN-rail (wiring on the housing)
  • Adjustment of unlimited holding time possible
  • All adjustments with DIP-switch on front panel
  • Permanent or pulse output adjustable



MID1E-800

Single loop detector

Q-SAQ INC High Quality Vehicle Detection

MID1E-800 MID2E-800 vehicle loop detector

MID2E-800

Dual loop detector

MID2E-800 Dual Channel Induction loop detector for vehicle detection with two output relays.
The MID2E-800 is a 24VDC C-Rail mountable inductive loop vehicle detector. The MID2E-800 reads and monitors two (2) vehicle induction loop and provides feedback to count systems as well as parking system about the current status of the loop. The MID2E-800 loop detector is also perfect as traffic loop detector and many other application where a reliable and accurate inductive loop vehicle detector is needed.
The detectors come in a small form factor that fits in all spaces and mounts on a standard 35 Din Rail.



Applications:


  • Car park
  • Parking Garage
  • Access Control
  • Gate Loop Detector
  • Traffic Loop Detector​
  • Vehicle detection loops
    Traffic Detector loops
  • Vehicle count systems with directional logic


​Alternative model:

VEK M2H Inductive loop vehicle detector (2-channel)


Special Characteristics:

  • Plastic housing with compact size to be mounted directly on DIN – or C-rail
  • Direct cabling, no plug socket
  • Microprocessor controlled
  • Isolation transformer between loop and detector electronics
  • Automatic Calibration when switching on or when changing the adjustment of holding time
  • Adjustment of unlimited holding time possible
  • Indication with LED`s
  • All adjustments with DIP – switch on front panel
  • Adjustments of relay functionality
  • Directional logic for vehicle count


Features

  • Isolation transformer between loop and detector electronics
  • Automatic calibration when switching on or changing the adjustment of holding time
  • Plastic housing with compact size to be mounted directly on DIN-rail (wiring on the housing)
  • Adjustment of unlimited holding time possible
  • All adjustments with DIP-switch on front panel
  • Directional logic for vehicle count
  • Permanent or pulse output adjustable
