VEK-M2H

Dual loop detector

VEKM1H VEKM2H vehicle loop detector

VEK-M1H

Single loop detector

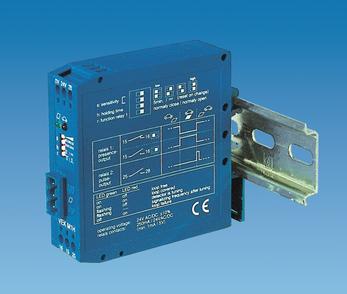

VEK-M2H Induction loop detector for vehicle detection with two relay outputs.

The VEK-M2H is a 24VDC C-Rail mountable inductive loop vehicle detector. The VEKM2H reads and monitors two (2) vehicle induction loop and provides feedback to count systems as well as parking system about the current status of the loop. The VEK-M2H loop detector is also perfect as traffic loop detector and many other application where a reliable and accurate inductive loop vehicle detector is needed.

The VEKM2H is a inductive loop detector that provides a directional logic so

The detectors come in a small form factor that fits in all spaces and mounts on a standard 35 Din Rail.

Applications:

  • Car park
  • Parking Garage
  • Access Control
  • Gate Loop Detector
  • Traffic Loop Detector​
  • Vehicle detection loops
  • Traffic Detector loops


​Alternative model:
VEK M2H Inductive loop vehicle detector (2-channel)
VEK-M2H Inductive loop vehicle detector (1-channel)
VEKM2H Inductive loop vehicle detector (1-channel)
MID2E-800 Inductive loop vehicle detector (1-channel)

Special Characteristics:


  • Plastic housing with compact size to be mounted directly on DIN – or C-rail
  • Direct cabling, no plug socket
  • Microprocessor controlled
  • Isolation transformer between loop and detector electronics
  • Automatic Calibration when switching on or when changing the adjustment of holding time
  • Adjustment of unlimited holding time possible
  • Indication with LED`s
  • All adjustments with DIP – switch on front panel
  • Adjustments of relay functionality
  • Directional logic with two vehicle detection loop

Features

  • Isolation transformer between loop and detector electronics
  • Automatic calibration when switching on or changing the adjustment of holding time
  • Plastic housing with compact size to be mounted directly on DIN-rail (wiring on the housing)
  • Adjustment of unlimited holding time possible
  • All adjustments with DIP-switch on front panel
  • Permanent or pulse output adjustable
  • Directional logic with two vehicle detection loop​





Q-SAQ INC High Quality Vehicle Detection

VEK-M1H Induction loop detector for vehicle detection with two relay outputs.

The VEK-M1H is a 24VDC C-Rail mountable inductive loop vehicle detector. The VEKM1H reads and monitors a single vehicle induction loop and provides feedback to count systems as well as parking system about the current status of the loop. The VEK-M1H loop detector is also perfect as traffic loop detector and many other application where a reliable and accurate inductive loop vehicle detector is needed.



The detectors come in a small form factor that fits in all spaces and mounts on a standard 35 Din Rail.

Applications:

  • Car park
  • Parking Garage
  • Access Control
  • Gate Loop Detector
  • Traffic Loop Detector​
  • Vehicle detection loops
  • Traffic Detector loops


​Alternative model:
VEK M1H Inductive loop vehicle detector (1-channel)

VEK-M1H Inductive loop vehicle detector (1-channel)

VEKM1H Inductive loop vehicle detector (1-channel)

MID1E-800 Inductive loop vehicle detector (1-channel)

Special Characteristics:


  • Plastic housing with compact size to be mounted directly on DIN – or C-rail
  • Direct cabling, no plug socket
  • Microprocessor controlled
  • Isolation transformer between loop and detector electronics
  • Automatic Calibration when switching on or when changing the adjustment of holding time
  • Adjustment of unlimited holding time possible
  • Indication with LED`s
  • All adjustments with DIP – switch on front panel
  • Adjustments of relay functionality



Features

  • Isolation transformer between loop and detector electronics
  • Automatic calibration when switching on or changing the adjustment of holding time
  • Plastic housing with compact size to be mounted directly on DIN-rail (wiring on the housing)
  • Adjustment of unlimited holding time possible
  • All adjustments with DIP-switch on front panel
  • Permanent or pulse output adjustable
