Q-SAQ INC High Quality Vehicle Detection

VEK-M4D 4-Channel Vehicle Loop Detector

Applications:


  • Parking Garages and open lots
  • Access control
  • Gate loop detector
  • Traffic loop detector
  • Traffic detector loops
  • Induction loop installation
  • Traffic detector
  • Gate loop


Special Characteristics

  • Plastic housing with compact size to be mounted directly on DIN – or C-rail
  • Direct cabling, no plug socket
  • RS485 or CAN BUS interface
  • Open collector outputs
  • Microprocessor controlled
  • Isolation transformer between loop and detector electronics
  • Automatic Calibration when switching on or when changing the adjustment of holding time
  • Adjustment of unlimited holding time possible
  • Indication with LED`s
  • All adjustments with DIP – switch on front panel
  • Adjustments of relay functionality


Features

  • Isolation transformer between loop and detector electronics
  • Automatic calibration when switching on or changing the adjustment of holding time
  • Plastic housing with compact size to be mounted directly on DIN-rail (wiring on the housing)
  • Adjustment of unlimited holding time possible
  • Directional Logic
  • Permanent or pulse output adjustable

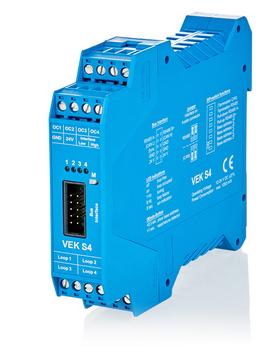

VEKM4D Vehicle loop detector

The VEKM4D is a 4-Channel vehicle loop detector for parking and traffic vehicle detection applications. The VEK-M4D was designed to monitor installations with up to 4 loops with a single vehicle detection system. The 4 inductive loop detectors cannot interfere with each other due to its multiplexing technology. When used as gate loop detector, traffic loop detector, or other inductive loop installations, the VEKM4D will always provide a satisfactory result.

The detectors come in a small form factor that fits in all spaces and mounts on a standard 35mm DIN Rail.
